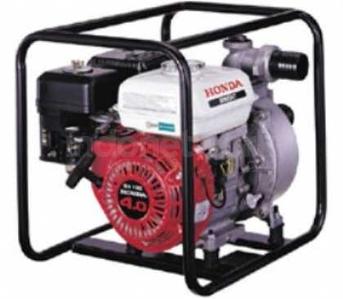

HONDA WATER PUMP, POMPA AIR, WATER PUMP HONDA WB20
HONDA WATER PUMP, POMPA AIR,
WATER PUMP HONDA WB20
GENERAL PURPOSE 2 " PUMP, GENERAL PURPOSE 2 " PUMP
EASY STARTING HONDA OHV COMMERCIAL ENGINE
152 GAL./ MIN. CAPACITY
SILICON CARBIDE MECHANICAL SEAL
CAST IRON VOLUTE AND IMPELLER
WB20
ENGINE: GX 120
DISPLACEMENT: 118 CC
BORE AND STROKE: 2, 4' ' X1, 7' '
COMPRESSION RATIO: 8, 5: 1
OIL ALERT: STD
PUMP TYPE: CENTRIFUGAL , SELF-PRIMING
VOLUTE: RIGID MOUNTEND CAST IRON
IMPELLER: CAST IRON
MECHANICAL SEAL: SILICONE CARBIDE
PRIMING TIME: 110 SEC@ 16, 4 FT
DRIVE SYSTEM: DIRECT
DISCHARGE CAPACITY: 152 GAL/ MIN
SUCTION PORT DIAMETER: 2' ' NPT
DISCHARGE PORT DIAMETER: 2' ' NPT
TOTAL HEAD LIFT: 92 FT
SUCTION HEAD LIFT: 26 FT
MAXIMUM PRESSURE: 40 PSI
SOLIDS HANDLING: N/ A
DIMENSIONS ( LXWXH) : 17, 9' ' X 14, 4' ' X 16, 5' ' .
HONDA WATER PUMP, POMPA AIR,
WATER PUMP HONDA WB20
GENERAL PURPOSE 2 " PUMP, GENERAL PURPOSE 2 " PUMP
EASY STARTING HONDA OHV COMMERCIAL ENGINE
152 GAL./ MIN. CAPACITY
SILICON CARBIDE MECHANICAL SEAL
CAST IRON VOLUTE AND IMPELLER
WB20
ENGINE: GX 120
DISPLACEMENT: 118 CC
BORE AND STROKE: 2, 4' ' X1, 7' '
COMPRESSION RATIO: 8, 5: 1
OIL ALERT: STD
PUMP TYPE: CENTRIFUGAL , SELF-PRIMING
VOLUTE: RIGID MOUNTEND CAST IRON
IMPELLER: CAST IRON
MECHANICAL SEAL: SILICONE CARBIDE
PRIMING TIME: 110 SEC@ 16, 4 FT
DRIVE SYSTEM: DIRECT
DISCHARGE CAPACITY: 152 GAL/ MIN
SUCTION PORT DIAMETER: 2' ' NPT
DISCHARGE PORT DIAMETER: 2' ' NPT
TOTAL HEAD LIFT: 92 FT
SUCTION HEAD LIFT: 26 FT
MAXIMUM PRESSURE: 40 PSI
SOLIDS HANDLING: N/ A
DIMENSIONS ( LXWXH) : 17, 9' ' X 14, 4' ' X 16, 5' ' .
